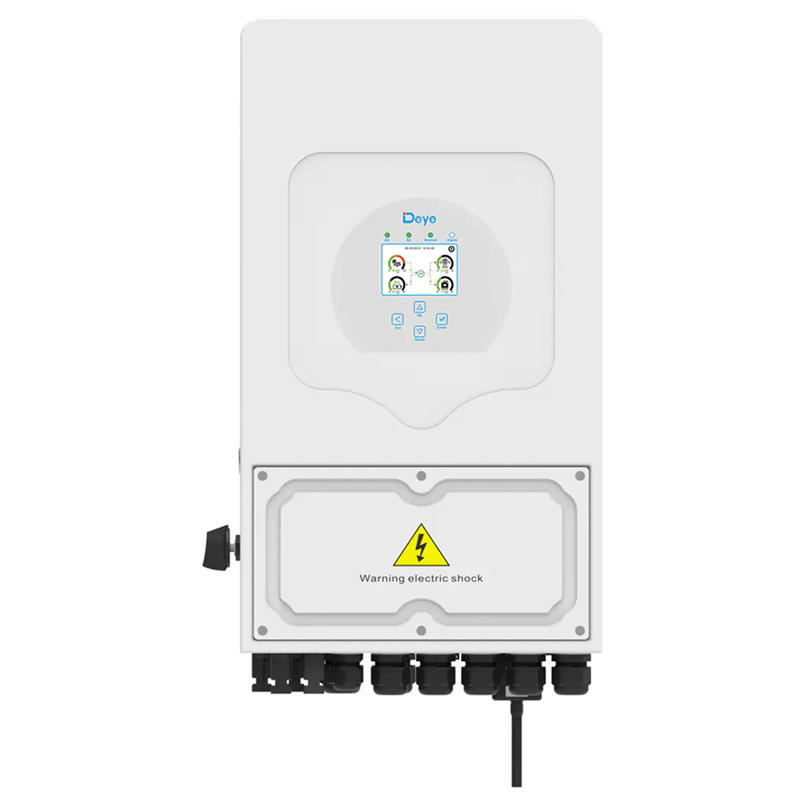

Invertor DEYE Hibrid 6kW Monofazat SUN-6K-SG05LP1-EU-AM2-P

ModelSUN-3.6K-SG05LP1-EU-AM2-PSUN-5K-SG05LP1-EU-AM2-PSUN-6K-SG05LP1-EU-AM2-PSUN-7K-SG05LP1-EU-AM2-PSUN-7.6K-SG05LP1-EU-AM2-PSUN-8K-SG05LP1-EU-AM2-PSUN-10K-SG05LP1-EU-AM2-PBattery Input DataBattery TypeLead-acid or Lithium-ionBattery Voltage Range (V)40–60Max. Charging Current (A)90120135175190190210Max. Discharging Current (A)90120135175190190210Charging Strategy for Li-ion BatterySelf-adaption to BMSNumber of battery input1PV String Input DataMax. PV Access Power (W)7200100001200014000152001600020000Max PV Input Power (W)57608000960011200121601280016000Max PV Input Voltage (V)500Start-up Voltage (V)125MPPT Voltage Range (V)150–425Rated PV Input Voltage (V)370Max Operating PV Input Current (A)18+1818+1818+1832+3232+3232+3232+32Max Input Short-Circuit Current (A)27+2727+2727+2748+4848+4848+4848+48No. MPP Trackers / Strings per MPPT2 / 1+12 / 1+12 / 1+12 / 2+22 / 2+22 / 2+22 / 2+2AC Input/Output DataRated AC Input/Output Active Power (W)36005000600070007600800010000Max AC Apparent Power (VA)39605500660077008360880011000Rated AC Input/Output Current (A)16.4/15.722.7/21.727.3/26.131.9/30.534.5/33.036.4/34.845.5/43.5Max AC Input/Output Current (A)18/17.225/23.930/28.735.0/33.538/36.340/38.350/47.9Max Continuous AC Passthrough (A)35 / 40 / 50Peak Power (off-grid)2× rated power (10s)Rated Input/Output Voltage Range (V)220/230V (0.85Un–1.1Un)Grid Connection FormL + N + PEGrid Frequency Range50Hz (45–55Hz) / 60Hz (55–65Hz)Power Factor Adjustment Range0.8 leading – 0.8 laggingTHDi<3%DC Injection Current<0.5% InEfficiencyMax Efficiency97.60%Euro Efficiency96.50%MPPT Efficiency>99%Equipment ProtectionIntegratedDC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch,Insulation Impedance Detection, Residual Current DetectionSurge Protection LevelTYPE II (DC), TYPE II (AC)InterfaceCommunicationRS485 / RS232 / CANMonitor ModeGPRS / WiFi / Bluetooth / 4G / LAN (optional)General DataOperating Temperature Range-40 to +60°C (>45°C derating)Ambient Humidity0–100%Altitude2500mNoise<30 dB(A)IP RatingIP65Inverter TopologyNon-IsolatedOver Voltage CategoryOVC II (DC), OVC III (AC)Cabinet Size (mm)330 × 580 × 232Weight (kg)24.9Warranty5 Years / 10 YearsThe Warranty Period Depends the Final Installation Site of Inverter.Refer to Warranty Policy for details.Grid RegulationIEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105Safety EMC StandardsIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
